Single Phase UPS

Single Phase UPS

0 out of 5 based on 0 customer ratings
(0 customer reviews)

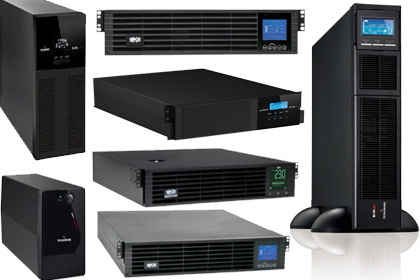

We supply Single Phase UPS Rack Mount and Floor Mount UPS, Rackmount UPS can be used for IT  and Telecom Networks and Tower / Floor Mount UPS can be used for various applications such UPS for Medical Equipment’s  and Other consumer & Industrial Applications

We supply Single Phase UPS RT Rack / Tower Type UPS for Server, Computer, IT Telecom and Industrial Applications. The Rack Tower type UPS can be be mounted in the network racks and also can be used as floor mount. The UPs digital display can be adjusted horizonal position for Rack Mount Type and Vertical position for Tower Type. Single Phase RM/RT UPS capacity start from 1 KVA to 16KVA.

We Supply following capacity single phase uninterruptable power supply units

1KVA UPS Rack Mount UPS / Floor Mount UPS

2KVA UPS Rack Mount UPS / Floor Mount UPS

2.2.KVA UPS Rack Mount UPS / Floor Mount UPS

3KVA UPS Rack Mount UPS / Floor Mount UPS

5KVA UPS Rack Mount UPS / Floor Mount UPS

6KVA UPS Rack Mount UPS / Floor Mount UPS

10KVA UPS Rack Mount UPS / Floor Mount UPS

12KVA UPS Rack Mount UPS / Floor Mount UPS

16KVA UPS Rack Mount UPS / Floor Mount UPS

The Online Double conversion Single Phase Rack Mount UPS / Floor Mount UPS’s are compatible with generator power and the power factor is 1 which means 1KVA = 1000VA. The external battery module enables extended runtime. The more External battery packs increase the backup time ups 24 hours runtime.

The Single Phase Rack Tower UPS has the following features

Operating as a frequency converter, the power supply frequency (50 Hz to/from 60Hz), but it also protects the load from power disturbances and guarantees additional battery power in case of mains failure. The operation and installation is simple and implies in correctly wiring the UPS and in selecting the frequency conversion mode in the LCD display.

Input frequency range
1-3kVA: 45-66Hz
6-10kVA: 40-70Hz
Output frequency: 50 or 60 Hz
Output de-rating:
1-3kVA: 60%
6-10kVA: 80%

Inbuilt batteries for 10 Minutes runtime based on the power load and option for external batteries for extended runtime, each external batteries will support 30 minutes depends on the power load. UPS will charge the batteries and the inverter will start automatically
• UPS will charge the batteries and start immediately on bypass. In this case, the operator has to start the inverter manually.
• UPS will charge the batteries and no output power will be seen either on bypass or on inverter. In this case, the operator has to start the inverter manually.

Click here to view our Computer UPS

Click Here to view our other Solutions

We supply Polar UPS, ABB Single Phase UPS, APC Single Phase UPS, Tripplite UPS, Eaton UPS
