[bt_bb_section layout=”boxed_1200″][bt_bb_row][bt_bb_column width=”1/2″ align=”left” vertical_align=”top” animation=”no_animation” padding=”normal” background_image=”” inner_background_image=”” background_color=”” inner_background_color=”” opacity=”” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][bt_bb_headline font_subset=”latin,latin-ext” superheadline=”ATA ENERGY STORAGE SYSTEM 4KVA” headline=”” subheadline=”” html_tag=”h3″ size=”inherit” align=”inherit” dash=”none” color_scheme=”” color=”” font=”inherit” font_size=”” font_weight=”” url=”” target=”_self” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_headline][bt_bb_image image=”72519″ size=”large” image_height=”” shape=”square” align=”inherit” caption=”” url=”” target=”_self” hover_style=”simple” content_display=”always” content_background_color=”” content_background_opacity=”” content_align=”middle” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_image][bt_bb_text]

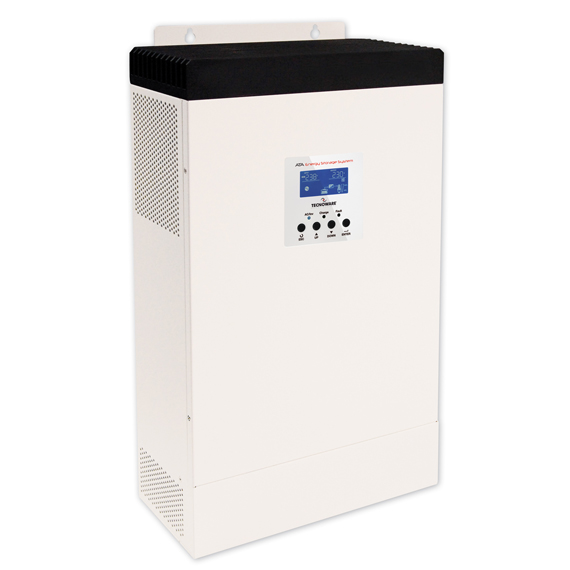

Inverter single-phase with intelligent energy storage system and ups function output nominal power 4kva – 3,2kw, sinewave output voltage 230 vac 50/60 hz, pv maximum power 3750 wp, mppt voltage working range 60-115 vdc, maximum open circuit voltage 145 vdc, maximum current from pv 60a, battery voltage 48 vdc, maximum batteries current charging 60a, mains input 170-280 vac 50/60 hz, usb and rs232 interface for programming and display of operating parameters via the watchpower software, parallel up to 4 units, dimensions wxhxd 29,5 x54x14 cm, weight 12,5 kg standard warranty: 5 years

[/bt_bb_text][/bt_bb_column][bt_bb_column width=”1/2″][bt_bb_headline font_subset=”latin,latin-ext” superheadline=”ATA ENERGY STORAGE SYSTEM 5KVA” headline=”” subheadline=”” html_tag=”h3″ size=”inherit” align=”inherit” dash=”none” color_scheme=”” color=”” font=”inherit” font_size=”” font_weight=”” url=”” target=”_self” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_headline][bt_bb_image image=”72520″ size=”full” image_height=”” shape=”square” align=”inherit” caption=”” url=”” target=”_self” hover_style=”simple” content_display=”always” content_background_color=”” content_background_opacity=”” content_align=”middle” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_image][bt_bb_text]

Inverter single-phase with intelligent energy storage system and ups function output nominal power 5kva – 4kw, sinewave output voltage 230 vac 50/60 hz, pv maximum power 3750 wp, mppt voltage working range 60-115 vdc, maximum open circuit voltage 145 vdc, maximum current from pv 60a, battery voltage 48 vdc, maximum batteries current charging 60a, mains input 170-280 vac 50/60 hz, usb and rs232 interface for programming and display of operating parameters via the watchpower software, parallel up to 4 units, dimensions wxhxd 29,5 x54x14 cm, weight 13,5 kg standard warranty: 5 years

[/bt_bb_text][/bt_bb_column][/bt_bb_row][bt_bb_row][bt_bb_column width=”1/1″][bt_bb_separator top_spacing=”small” bottom_spacing=”small” border_style=”dotted” border_width=”” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_separator][/bt_bb_column][/bt_bb_row][/bt_bb_section][bt_bb_section layout=”boxed_1200″][bt_bb_row][bt_bb_column width=”1/3″][bt_bb_image image=”72527″ size=”thumbnail” image_height=”” shape=”square” align=”inherit” caption=”” url=”” target=”_self” hover_style=”simple” content_display=”always” content_background_color=”” content_background_opacity=”” content_align=”middle” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_image][/bt_bb_column][bt_bb_column width=”2/3″][bt_bb_text]

Battery box for ata energy storage system, batteries 100ah agm 12v100ah and 12v200ah, Eacpe12v100fifgl, Eacpe12v200fifgl, dc breaker and battery connection cable included, dimensions wxhxd 60x76x58 cm, weight 28 kg standard warranty: 5 years

[/bt_bb_text][/bt_bb_column][/bt_bb_row][/bt_bb_section][bt_bb_section layout=”boxed_1200″][bt_bb_row][bt_bb_column width=”1/1″][bt_bb_headline font_subset=”latin,latin-ext” superheadline=”” headline=”How to Buy? Call / Whatsapp +974 – 77295040 Email: sales@polarqatar.com” subheadline=”” html_tag=”h4″ size=”inherit” align=”center” dash=”none” color_scheme=”” color=”” font=”inherit” font_size=”” font_weight=”” url=”” target=”_self” responsive=”” publish_datetime=”” expiry_datetime=”” el_id=”” el_class=”” el_style=””][/bt_bb_headline][/bt_bb_column][/bt_bb_row][/bt_bb_section]
